Dengensha provides a variety of monitoring equipment, including weld scopes and pressure sensor to ensure accurate current/pressure monitoring and recording of welding quality. Weld scopes can measure welding current, cycle time, and peak current.

WS 100
WS 100 With Pressure Sensor
WS 80
Pressure Mate

Weld Scope WS-100 (Handheld)

  • Compact and portable: W160 x H87 x D33
  • Lightweight: Only 450g (including batteries)
  • Large capacity of 10,000 weld point data storage
  • USB connection to PC
  • Toroidal coil
  • Digital display
  • Charges in 3.5 hrs. and operates for 8 hrs. (approximately)
  • Can be used with optional pressure sensor:
    • 1, 3, and 5 ton
    • Flexible 10” arm for hard-to-reach spots
  • Monitors:
    • AC and MFDC welders
    • Single- and three-phase welders

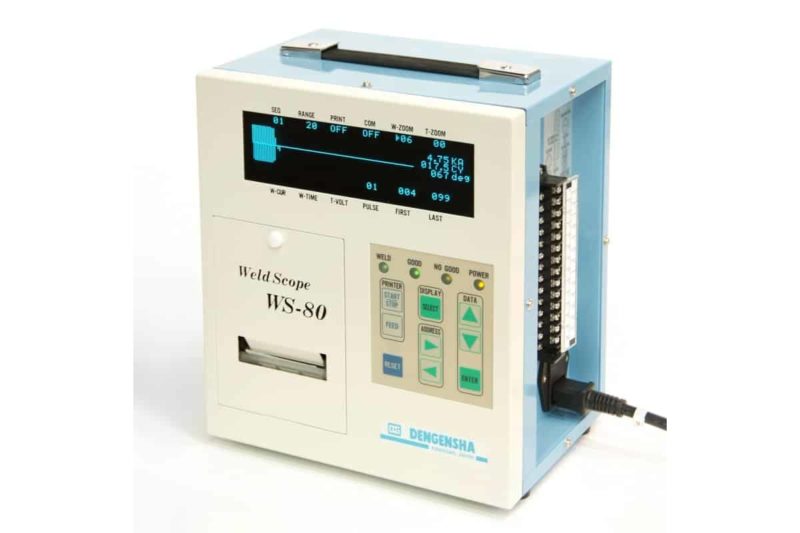

Weld Scope WS-80

  • 800 weld point data
  • Prints to the built-in thermal printer or a PC
  • Waveform display
  • Zoom function
  • Toroidal coil
  • Fluorescent display
  • Lithium backup battery
  • 15 Monitoring functions
  • 3 selectable detection ranges
  • Upper and lower limit error signals
  • “Good/No Good” output signals
  • Detects secondary cable wear
  • Monitors:
    • AC and DC welders
    • Single- and three-phase welders
    • Capacitor discharge welders
    • AC seam welders
    • Pulsation AC/DC welders
    • Inverter welders

Pressure Mate RF-32P

  • Compact and lightweight for easy force measurements.
  • Welding pressure setting with precision.
  • Convenient hand-held size
  • Analog dial, accurate to ±3%
  • Two force ranges are available with readouts in kgf or knf
